Metsaveokärud

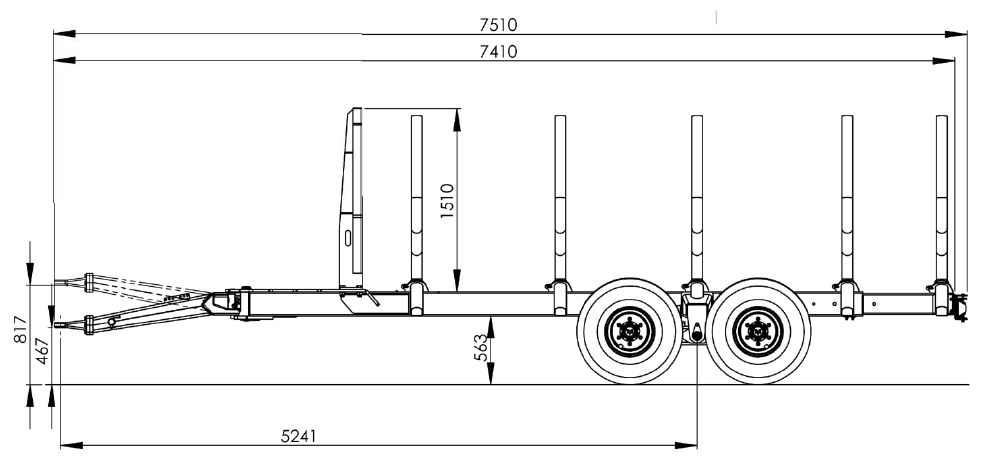

MTM 12T
| TECHNICAL SPECIFICATION | |
|---|---|
|
Gross weight |
12 000 kg |
|
Axles/bolts |
70x70-6 |
|
Chassis |
2x(200x100x6) mm |
|
Drawbar cylinder |
2 pc |
|
Loading area |
2,35 m2 |
|
Length of loading area |
4120 mm |
|
Total length |
6750 mm |
|
Total width with standard wheels |
2180 mm |
Price: 12 500 €

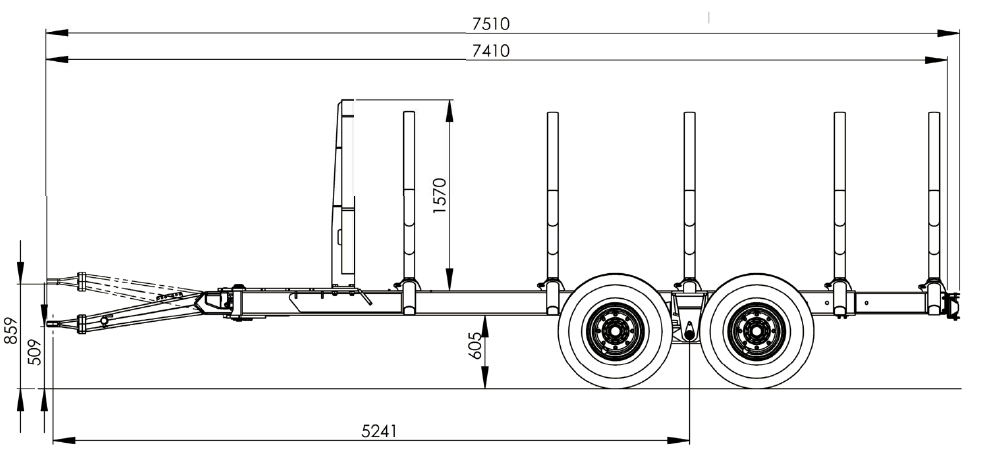

MTM 15T
| TECHNICAL SPECIFICATION | |
|---|---|
|
Gross weight |
14 500 kg |
|
Axles/bolts |
80x80-8 |
|
Chassis |
2x(200x100x8) mm |
|
Drawbar cylinder |
2 pc |
|
Loading area |
2,6 m2 |
|
Length of loading area |
4120 mm |
|
Total length |
6750 mm |
|
Total width with standard wheels |
2380 mm |
Price: 13 500 €
Previous
Next
Tõstukid

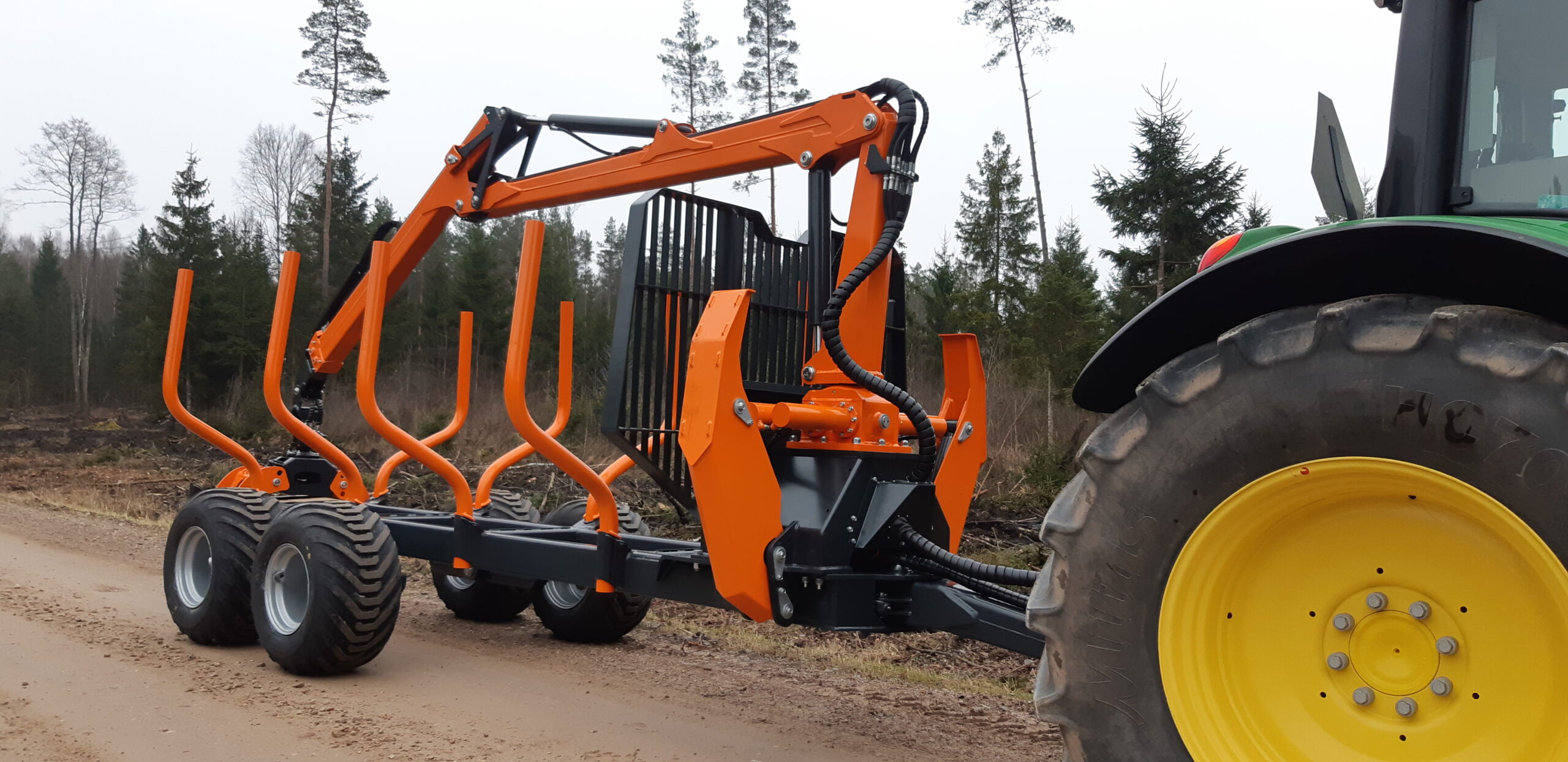

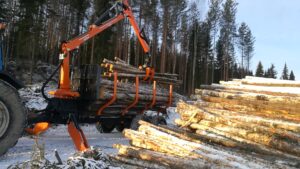

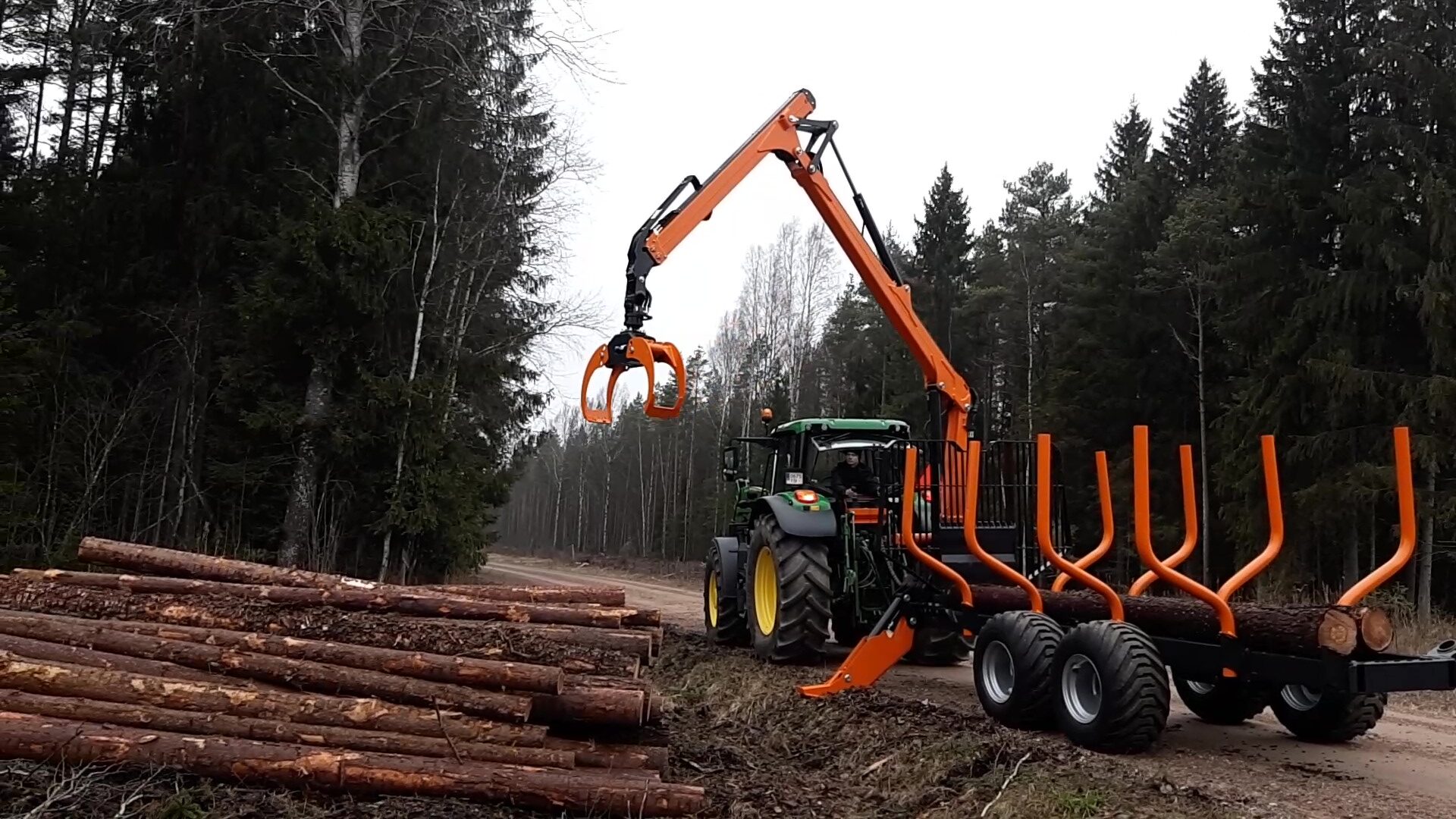

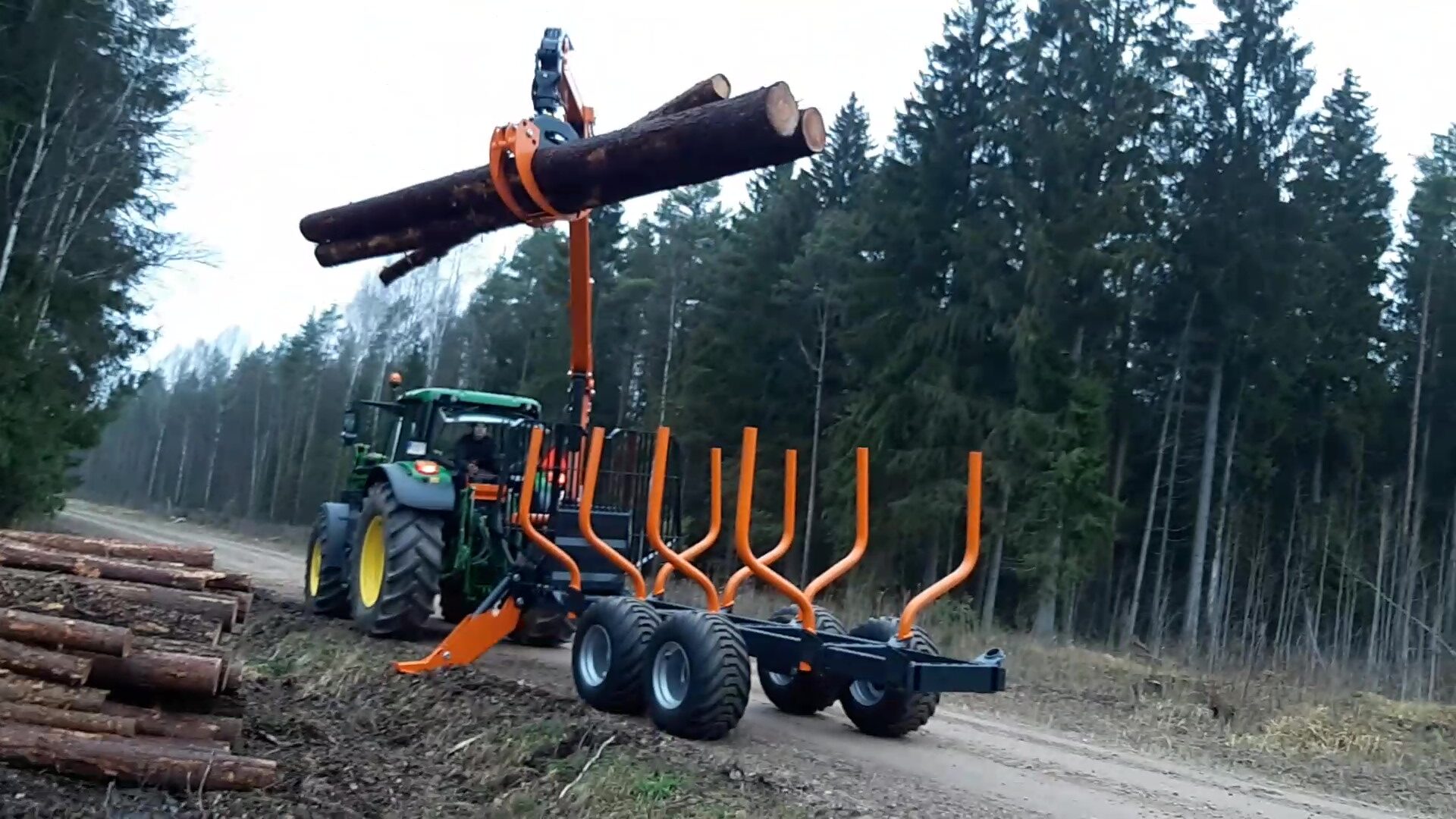

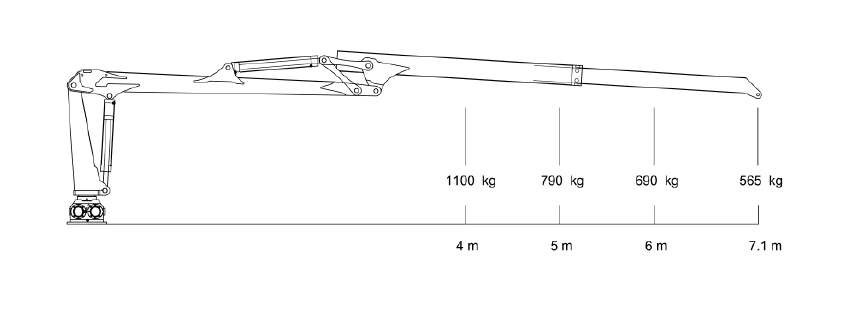

MTM 7100
| TECHNICAL SPECIFICATION | |
|---|---|
|
Length of crane |
7,1 m |
|
Lifting torque bruto |
59 kNm |
|
Lifting power at 4 meters without grapple and rotator |
1100 kg |
|
Lifting power at full reach without grapple and rotator |
565 kg |
|
Slewing torque |
15,5 kNm |
|
Slewing cylinders |
4 pcs |
|
Telescope length |
1,82 m |
|
Working pressure |
190 bar |
Price: 7 500 €
MTM 7300
| TECHNICAL SPECIFICATION | |
|---|---|
|
Length of crane |
7,3 m |
|
Lifting torque bruto |
85 kNm |
|
Lifting power at 4 meters without grapple and rotator |
1460 kg |
|
Lifting power at full reach without grapple and rotator |
810 kg |
|
Slewing torque |
24 kNm |
|
Slewing cylinders |
4 pcs |
|
Telescope length |
1,90 m |
|
Working pressure |
190 bar |
